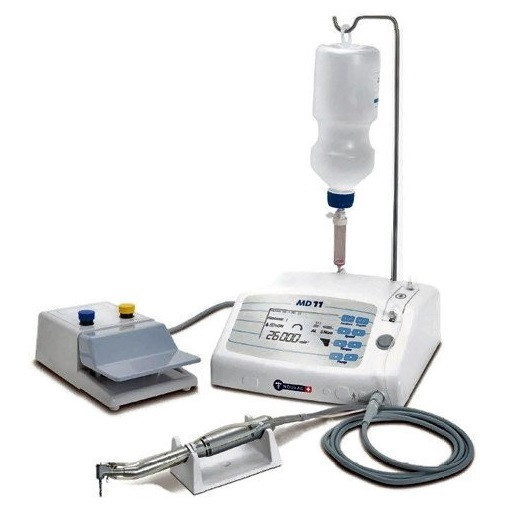

MD11 Surgical Motor System with 32:1 Contra Angle Handpiece (2026)

• Developed with the intention to put extra smoothness into your hands.
• Improved electronic motor and a sophisticated motor control are key players in this new generation of Nouvag motor systems
• New design with smooth edges for easy cleaning and a display that gives you all the information at a glance
• Single function keys with haptic and audible feedback guarantee for accurate device setup
• Inserting and changing of tube sets is carried out effortlessly by a front access push button and tube compartment
• The tube bracket swings open and gives good view to the tube seat and the two notches to fix the tube in
• A broad variety of extensions and accessories is provided by Nouvag AG and can anytime be added.

Advantages

• Sophisticated motor control for smooth and precise power delivery in any range of speed
• Motor speed range of 300 – 40,000 rpm. 70 Ncm of maximum torque at the 20:1 Contra Angle with graphical, real time torque control
• Sturdy, high quality architecture and finish
• Integrated pump system for cooling the instrument to prevent of tissue damage
• 3 programs for drilling, cutting threads, screwing in the implants and placing the cover screw

Technical Data

• Voltage – 100/115/230 Volt at 50 – 60 Hz
• Max. output power/motor torque – 120 W/6 Ncm
• Speed range, motor -300 – 40,000 rpm
• Max. torque at the instrument – 70 Ncm, 20:1 Contra Angle
• Attachment of instruments – ISO 3964 connector (DIN 13940)
• Cable length of motor – 2 meters
• Coolant flow rate – 1 – 100 ml/min
• Dimensions, W x D x H – 260/250/110 mm
• Weight, control unit – 2.8kg
• Foot control – Vario foot pedal
